Wuliting power station in Zhjiang province

Wuliting power station in Zhjiang province

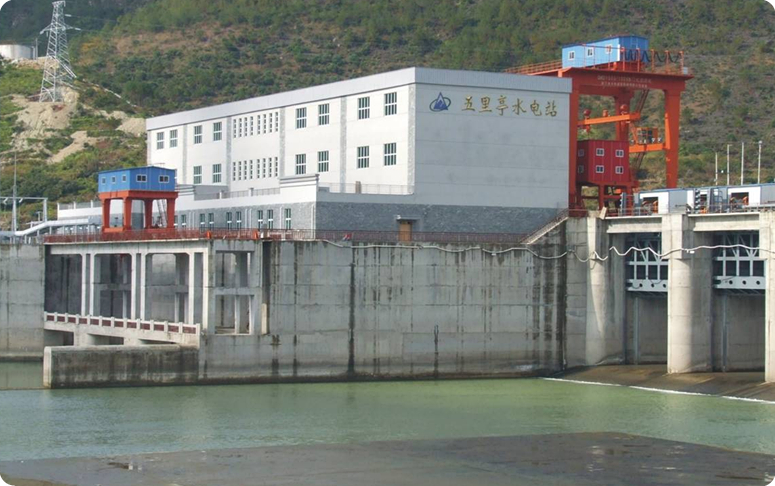

      Wuliting power station located at Lishui city of Zhejiang province. It is mainly for power generation and is also one comprehensive hydropower engineering incorporated to improve the shipping condition. Its installed capacity is 3×14MW with annual average power generation output of 12135MW.h. The units began to generator at July,2006.

parameter of the turbine

Rated output power：14510kw

Rated water head ：7.1m

Rated revolving speed：93.75r/min

Rated discharge：225.2m3/s

Runner diameter：Φ5400mm

Parameter of generator

Rated power：14000kw

Rated voltage：6.3Kv

Power factor：0.92

Rated frequency：50HZ

Pole number：64
