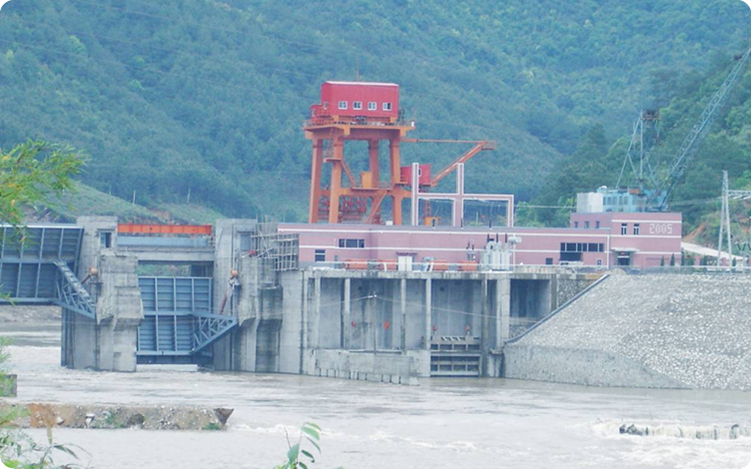

Honghu power station in Fujian province

Honghu power station in Fujian province

      Honghu power station lies on the branch of NanPu brook in Jianxi city FuJian province. Its installed capacity is 2×8 MW and the runner diameter is Φ 3550mm.This first unit began to operate commercially on 29th Jan. 2006.

parameter of the turbine

Rated output power：8300kw

Rated water head ：8.8m

Rated revolving speed：150r/min

Rated discharge：103.6m3/s

Runner diameter：Ф3550mm

Parameter of generator

Rated power：8000kw

Rated voltage：6.3Kv

Power factor：0.9

Rated frequency：50HZ

Pole number：40
