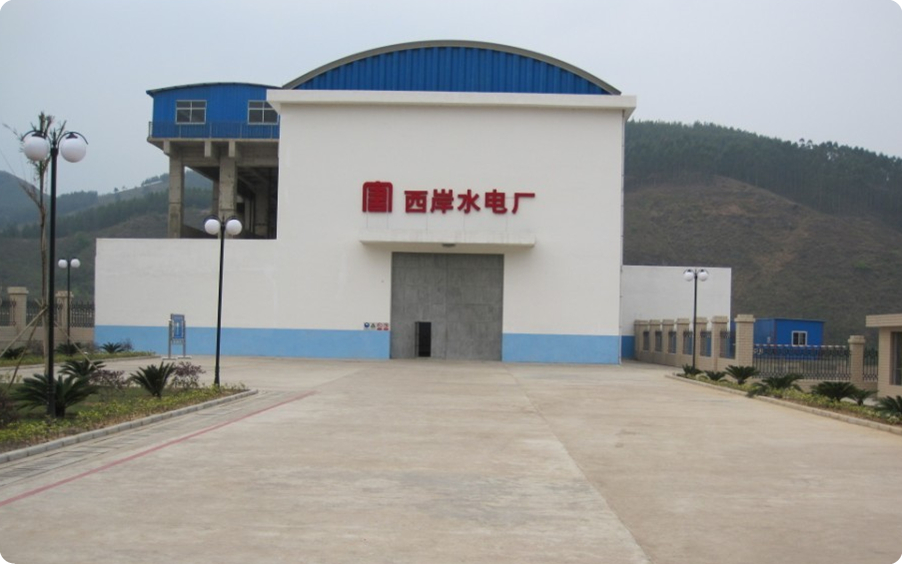

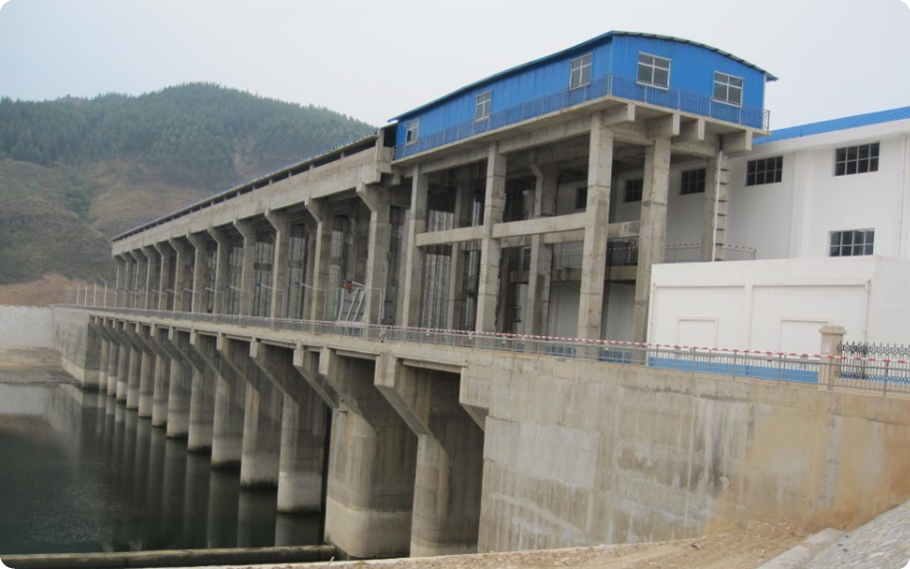

Xi’an power station in Guangxi province

Xi’an power station in Guangxi province

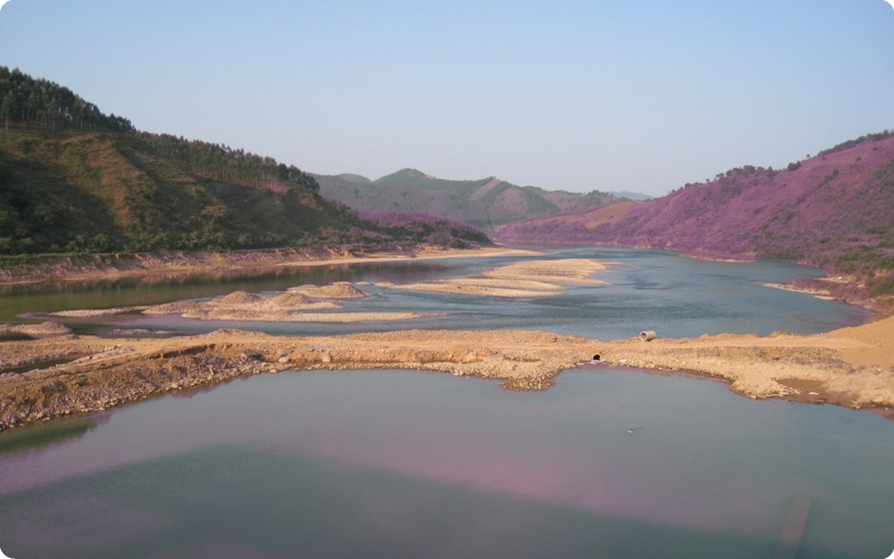

      It located at the downstream of Luoqing River on Luzhai town Xiliuzhou city Guangxi province. It has passed the running test lasted 72 hours on 12th Sep.2009 and began to generate power officially.Its installed capacity is 2×10MWand the runner diameter is Φ4000mm.

parameter of the turbine

Rated output power：9380kw

Rated water head ：8.3m

Rated revolving speed：136.4r/min

Rated discharge：124.3m3/s

Runner diameter：Ф4000mm

Parameter of generator

Rated power：9000kw

Rated voltage：6.3Kv

Power factor：0.9

Rated frequency：50HZ

Pole number：60
